AXBL型高压无功自动补偿装置

首页--产品展示--AXBL型高压无功自动补偿装置

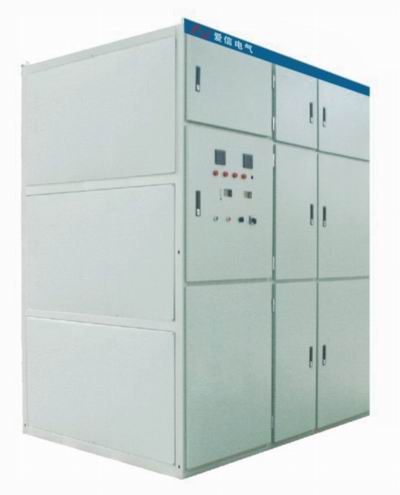

AXBL型高压无功自动补偿装置




结构与功能综述 STRUCTURAL AND FUNCTIONAL OVERVIEW

- 成套装置有一个含控制部分的高压电容电抗柜和若干个高压电容电抗柜组成。柜内安装有避雷器、高压隔离开关、电流互感器、电容器、电抗器、投切开关、放电线圈、喷逐式熔断器及控制器

- 多种保护功能：具备过流保护、过压保护、欠压保护、温度超限保护、避免谐振保护、两相电流差保护、开口三角电压保护等多种保护功能

- 额定电压：6KV~35KV（6KV~10KV 为柜式结构、35KV 为框架式结构）

- 投切方式：真空接触器或真空断路器，单组容量超过 1500kvar 时，宜选用真空断路器

- 电容器：选用先进的技术设计，使用无氯、安全性高的环保型绝缘油，电容器内装特制限流熔丝和放电电阻

- 串联电抗器：真空浸渍铁心电抗器或空心电抗器，电抗率可选 1%、6% 或 12%

  - 温度要求：-45℃ ~+55℃

  - 使用寿命：20 年以上

                   -质保期：5年

型号规格

补偿容量

系统电压 (kv)

电抗率（%）

柜体尺寸 mm 宽 x 高 x 深

AXBL-300/6-6

300

6

6

1200x2500x1500

AXBL-600/6-6

600

6

6

1200x2500x1500

AXBL-900/6-6

900

6

6

1200x2500x1500

AXBL-1000/6-6

1000

6

6

1200x2500x1500

AXBL-1200/6-6

1200

6

6

1500x2500x1500

AXBL-1500/6-6

1500

6

6

1500x2500x1500

AXBL-1800/6-6

1800

6

6

1500x2500x1600

AXBL-2000/6-6

2000

6

6

1500x2500x1600

AXBL-2400/6-6

2400

6

6

1600x2500x1700

AXBL-3000/6-6

3000

6

6

1600x2500x1700

AXBL-4000/6-6

4000

6

6

4800x2500x1500

AXBL-4800/6-6

4800

6

6

4800x2500x1500

AXBL-5000/6-6

5000

6

6

4800x2500x1500

AXBL-6000/6-6

6000

6

6

4800x2500x1500

AXBL-8000/6-6

8000

6

6

4800x2500x1500

AXBL-300/10-6

300

10

6

1200x2500x1500

AXBL-600/10-6

600

10

6

1200x2500x1500

AXBL-900/10-6

900

10

6

1200x2500x1500

AXBL-1000/10-6

1000

10

6

1500x2500x1500

AXBL-1200/10-6

1200

10

6

1500x2500x1500

AXBL-1500/10-6

1500

10

6

1500x2500x1500

AXBL-1800/10-6

1800

10

6

1500x2500x1600

AXBL-2000/10-6

2000

10

6

1500x2500x1600

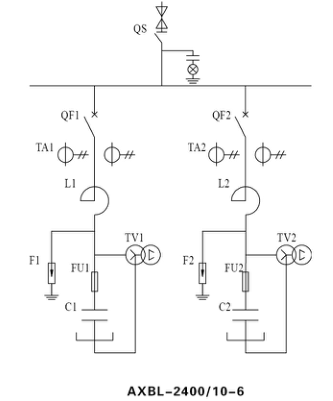

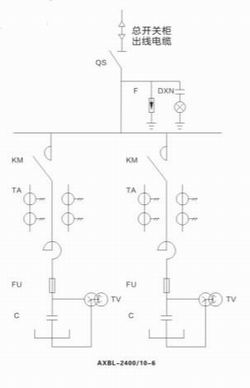

AXBL-2400/10-6

2400

10

6

1600x2500x1700

AXBL-3000/10-6

3000

10

6

1600x2500x1700

AXBL-4000/10-6

4000

10

6

4800x2500x1500

AXBL-4800/10-6

4800

10

6

4800x2500x1500

AXBL-5000/10-6

5000

10

6

4800x2500x1500

AXBL-6000/10-6

6000

10

6

4800x2500x1500

AXBL-8000/10-6

8000

10

6

4800x2500x1500
